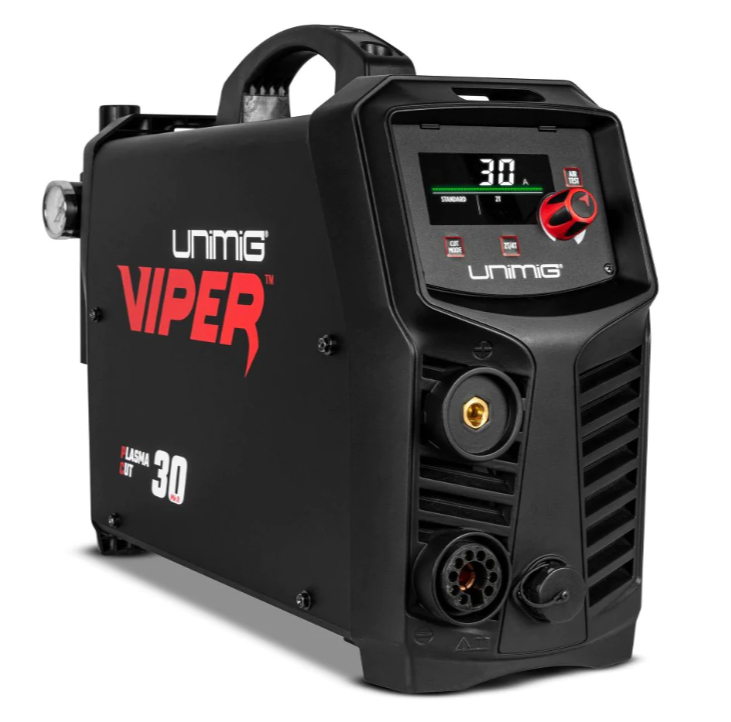

Unimig U14005K Viper Cut 30 MK II Plasma Cutter
🛡️ Delivered to your door with a guarantee of original products and 100% customer satisfaction.
🚚 Order today and get it delivered to your door ASAP. Easy return guarantee!
779.00$
3
People watching this product now!
Delivery & Returns
We offer free next working day delivery on orders over 250 $, placed before 4pm Monday to Thursday. Note that next day delivery for orders placed after 4pm on Thursday, up to 4pm Friday, is usually Monday (excluding bank holidays). Estimated delivery for all orders placed over a weekend is Tuesday. Note that due to the size and weight of some products, next working day delivery is not available and additional carriage charges will apply. If you would like to return your goods, we will offer a full refund or exchange within 30 days of purchase. For full details, visit our delivery and returns page.
Warranty
All of our products come with a standard 1 year manufacturers warranty, however if you would like to discuss extending this warranty, please contact our customer service team email sales@humatoolsco.com. For further warranty information from this specific manufacturer, visit our warranty page.
Description
Cut anything, anywhere. Whether it’s solid or perforated metal, you’ll get a clean cut up to 12mm thick. Now with the addition of a CNC connection, the VIPER CUT 30 Mk II can handle anything you throw at it.
Features:
- 10 AMP PLUG – CONNECT TO ANY STANDARD OUTLET.
- 12mm CLEAN CUT – MILD STEEL.
- 2T/4T TORCH CONTROLS – MORE COMFORT WHEN CUTTING.
- CNC Connection – CONNECT TO A CNC TABLE.
Specifications:
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE: 240V Single Phase
- SUPPLY PLUG: 10 AMP
- RATED INPUT POWER (kVA): 7.5
- RATED OUTPUT: 92V
- PROTECTION CLASS: IP21S
- INSULATION CLASS: F
- MINIMUM GENERATOR (kVA): 8.0
- DINSE CONNECTOR: 10/25
- STANDARD: AS/NZ60974-1
- WARRANTY (Years): 2
SIZE & WEIGHT
- DIMENSIONS (mm): 534x166x343mm
- WEIGHT (kg): 8.5kg
PLASMA CUT SPECIFICATIONS
- PLASMA CUT CURRENT RANGE: 20-30A
- PLASMA CUT DUTY CYCLE @ 40°C: 15% @ 30A / 60% @ 23A / 100% @ 20A
- MILD STEEL CUT THICKNESS: 12mm
- MILD STEEL SEVERANCE THICKNESS: 14mm
- ALUMINIUM CUT THICKNESS: 6mm
- ALUMINIUM SEVERANCE THICKNESS: 8mm
- STAINLESS STEEL CUT THICKNESS: 6mm
- STAINLESS STEEL SEVERANCE THICKNESS: 8mm
- AIR FLOW DRAW OFF (L/min): 170
- AIR FLOW PRESSURE (Bar): 5-6 (70-87 psi)
- PLASMA ARC START: Pilot Arc

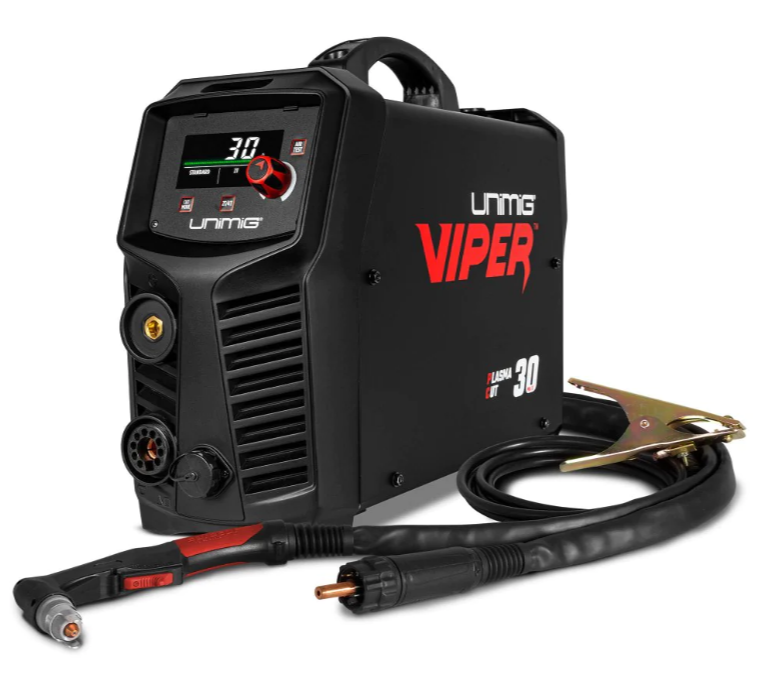

Includes:
- VIPER™ CUT 30 Mk II Plasma Cutter

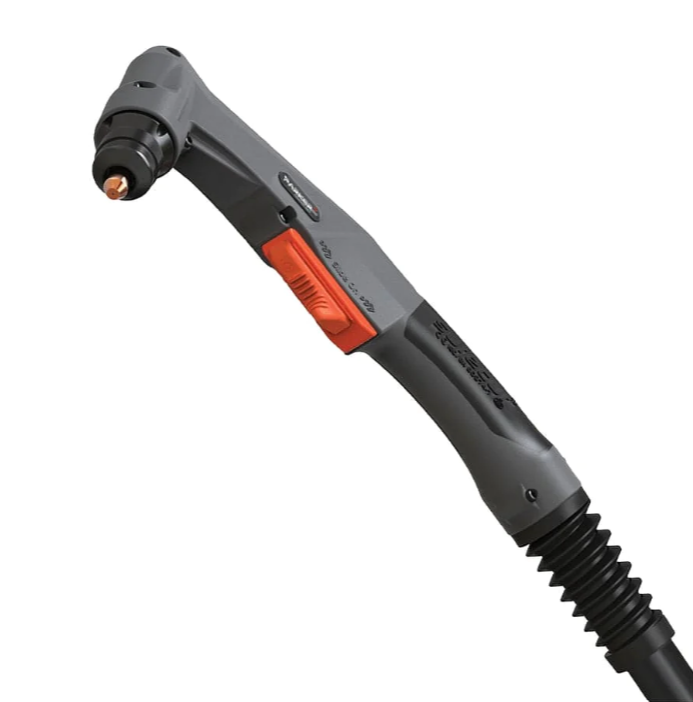

- 4m SC30 Plasma Torch
- 3m 300A Earth Clamp
- Air Regulator
- Operating Manual
